Mermaid Graph\Butterfly Compare

← Report catalog

Mermaid Graph\Butterfly Compare is one of Understand's built-in reports — run it on your own code from the GUI, or headlessly with und report.

What is a report? · Which report should I use?

Mermaid Graph\Butterfly Compare

Languages: Any
Targets: Classes, Files, Functions
Create Mermaid input for a Butterfly Compare Graph

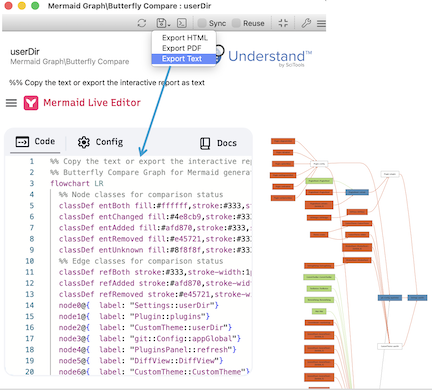

Mermaid is a web-based graph tool. Mermaid input is text, so it's recommended to export this interactive report as a text file which can then be used directly with Mermaid.

This version preserves comparison coloring by using Mermaid classDef classes for entities and references, so that added/removed/changed items remain visually distinct and easy to restyle.
