Architecture Metric Chart

Languages: Any
Targets: Architectures, Project
Visualize metrics for the architecture's immediate children.

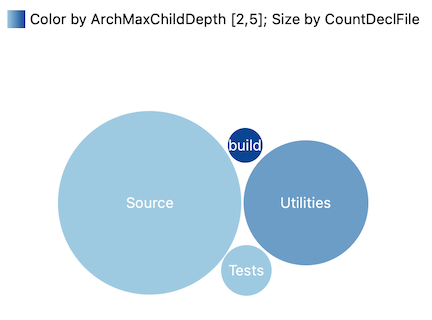

This chart allows selecting a size metric and a color metric. Child architectures (or root architectures if the target is a database) are nodes with size determined by size metric and the color scaled by color metric. The layout can be flat bubble, pie, or a treemap.

See also the similar metric charts for files, classes, and functions .

This variant is a plugin. It can be enabled/disabled from the Plugin Manager.
