Fix parse errors (missing headers, undefined macros, inactive code)

Symptoms of an inaccurate C/C++ parse:

  • Inactive code that should be analyzed — usually a macro isn't defined, so the wrong #ifdef branch is active.
  • Unresolved entities (drawn in the theme's disabled/"unknown entity" color) or the same entity appearing multiple times.
  • Errors like “unknown type name …” in the Violation Browser's Analysis Errors (specific messages are decoded in the error-message index).

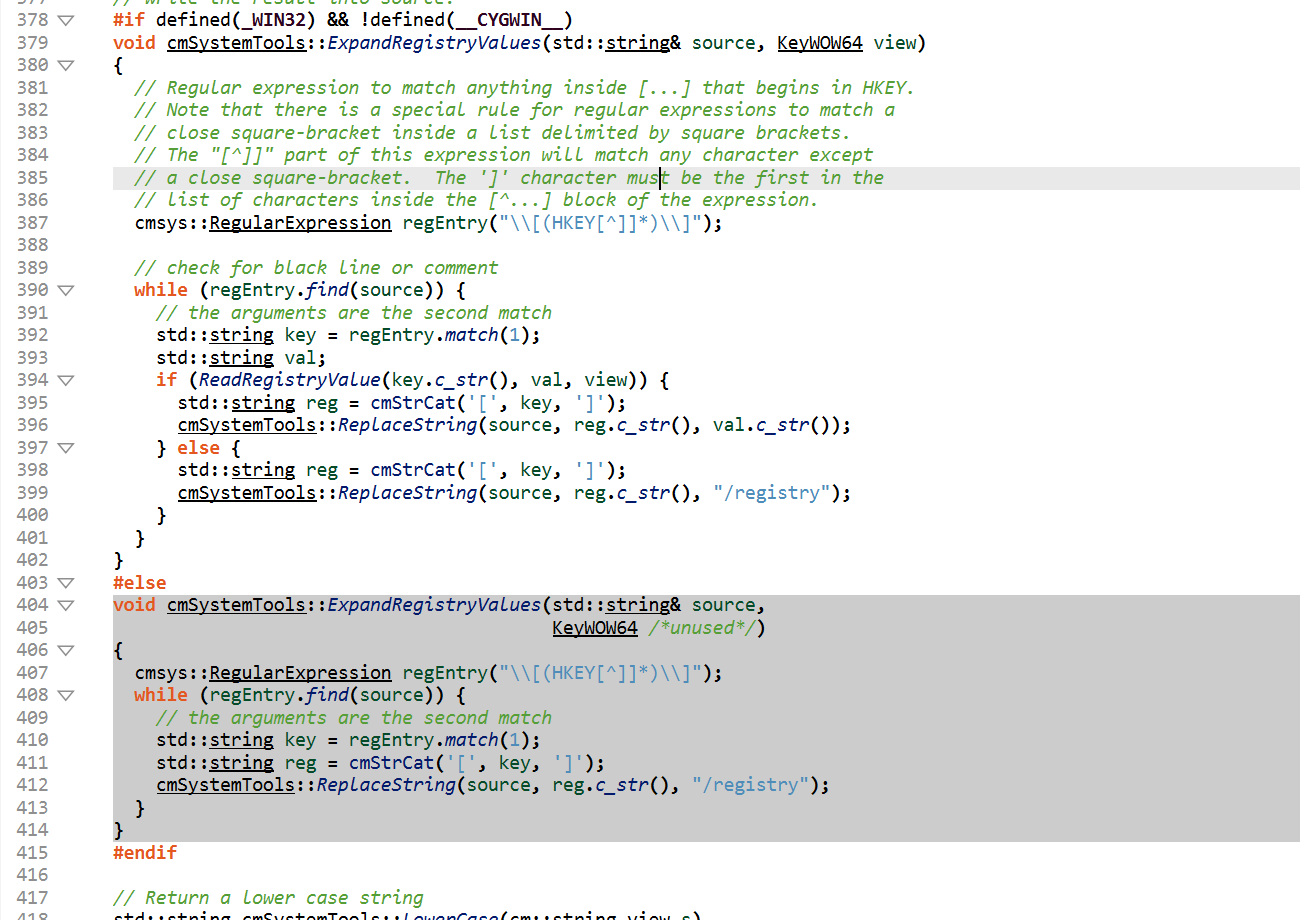

An editor view of an #if defined(_WIN32) block: the Windows implementation renders normally, while the #else branch below it is shaded as inactive code.
Inactive code is shaded a different color from active code: here the _WIN32 branch is active and its #else twin is inactive — correct for a Windows project. When code you expect to be analyzed renders like the lower block, a macro is missing.

The most reliable fix is to feed Understand your real build (CMake / Build Watcher or Buildspy). To fix things directly, use the built-in tools.

Improve Project Accuracy

Open Project → Improve Project Accuracy:

  • Missing Includes — opens the missing-header configuration (dialog Missing Header Files) so you can add the include directories Understand couldn't find.
  • Undefined Macros — opens the Undefined Macros dialog; define the macros so the intended #ifdef branch becomes active and the inactive code is parsed.
  • More Information — opens SciTools' accurate-projects guidance.

After adjusting includes/macros, re-analyze (Project → Analyze All Files).

C/C++ include & macro keys (each has Add/Remove variants): -C++Includes, -C++SystemIncludes, -C++Macros, -C++Undefined, -C++Frameworks — the full list is in the und settings reference. Confirm you're in the accurate Strict mode (-C++UseStrict On, the default) — see accurate C/C++ projects.

Parse problems in other languages almost always trace back to that language's own configuration — see the per-language accuracy notes.
