Install Understand

First download Understand and create an account — the latest build is always at licensing.scitools.com/download (supported OS versions are listed under supported languages & platforms) — then pick your platform below. After installing, enter your license. Installing on a network with no internet? See Install & run Understand fully offline.

Understand ships on Windows as a small web installer (.exe) that downloads the components you select, so it needs internet while it runs (for a disconnected machine, see Create an offline install kit). It installs to %ProgramFiles%\SciTools by default — administrator rights are requested when needed — and adds Start Menu and desktop shortcuts and a per-user PATH entry, each optional.

Interactive install

Run the downloaded Understand-<version>-Windows-64bit.exe. A Default Install includes everything: the application, command-line tools, documentation, samples, and a local AI model (downloaded during installation). Pick Advanced Install instead to choose components, the AI model, or the shortcut and PATH options. Then enter your license.

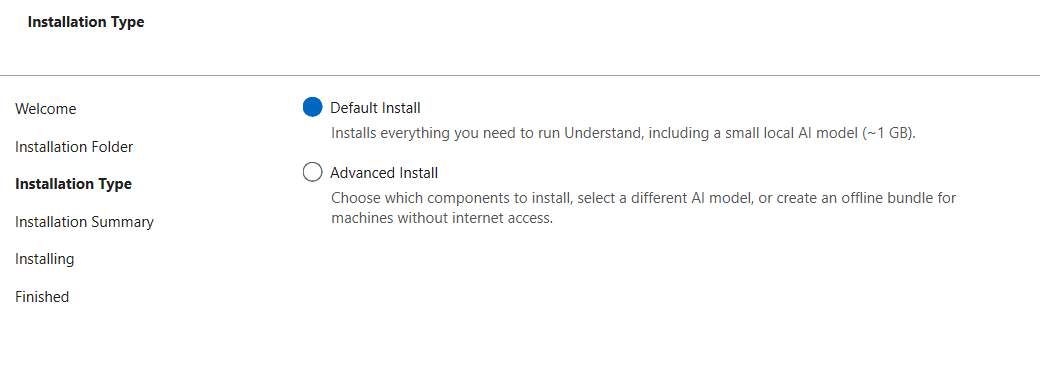

The installer's Installation Type page offering Default Install, which installs everything including a small local AI model, and Advanced Install for choosing components, a different AI model, or creating an offline bundle.
Default suits most machines; Advanced opens the component and option pages.

The installer looks up the current release each time it runs, so an installer you downloaded weeks ago still installs today's release — there's no need to fetch a fresh installer first. The Welcome page names the version it is about to install, and Advanced Install can install an earlier release instead.

If the folder already holds an Understand installation, the installer offers to update it in place (only changed components are downloaded). Choosing a fresh installation instead deletes everything in that folder first — it warns before it does.

Silent / unattended install (for network / mass deployment)

The installer has a command-line mode. It cannot elevate itself, so run it from an administrator prompt when installing under %ProgramFiles%:

Understand-<version>-Windows-64bit.exe --root "C:\Program Files\SciTools" --accept-messages --confirm-command install

That installs the default component set, AI model included. To skip the model download (or pick exact components), turn off the defaults and name what you want. Name the concrete packages: com.scitools.understand on its own is the group every package belongs to, and asking for it selects all of them — every AI model included, about 16 GB.

Understand-<version>-Windows-64bit.exe --root "C:\Program Files\SciTools" --accept-messages --confirm-command --no-default-installations install com.scitools.understand.core com.scitools.understand.cmd

Then license it non-interactively (see command-line licensing):

"C:\Program Files\SciTools\bin\pc-win64\und" -setlicensecode XXXXXXXXXX

Understand ships on macOS as a .dmg and is a Universal binary (Apple Silicon and Intel).

Install

  1. Download the .dmg from licensing.scitools.com/download and wait for the download to finish completely.
  2. Double-click the .dmg. A window opens showing Understand and the Applications folder.
  3. Drag Understand onto Applications (this copies all the needed files).
  4. Launch it from Applications, then enter your license when prompted.

Gatekeeper: "can't be opened because it is from an unidentified developer"

If macOS blocks the first launch, right-click the app and choose Open, then confirm.

This is macOS Gatekeeper. Understand is a signed application, but it loads some libraries from outside the app bundle, which Gatekeeper can mis-flag on first run. Opening it once via right-click → Open clears the warning for subsequent launches.

No CLI-only kit on macOS

The command-line-only kit is offered on Windows and Linux; on macOS the und CLI ships inside the app bundle (Understand.app/Contents/MacOS).

Understand ships on Linux as a .tgz tarball (there is no installer). It is an x86_64 (amd64) build — it does not run on ARM Linux (including ARM VMs on Apple Silicon).

1. Extract and run

tar -xvzf Understand-<version>-Linux-64bit.tgz
cd scitools/bin/linux64
./understand

The tarball extracts to a scitools/ folder; the GUI executable is scitools/bin/linux64/understand (the CLI tools und, uperl, upython live alongside it).

2. Install required system libraries

Depending on your distribution you may need these (install with your package manager):

libxcb-xinerama0, libxkbcommon-x11-0, openssl (1.1.1+), libxcb-shape0, libxcb-cursor0, libpcre2-16-0. Wayland-default systems also need the libxcb-* set (libxcb-util1, libxcb-icccm4, libxcb-image0, libxcb1, libxcb-keysyms1, libxcb-render-util0). Some users also need curl and ca-certificates.

On RHEL/Rocky 8.6+ install via sudo yum: xcb-util-wm, xcb-util-image, xcb-util-keysyms, xcb-util-renderutil, xcb-util-cursor.

Understand still won't start? Find the missing library

QT_DEBUG_PLUGINS=1 ./understand
The output names the package(s) Understand needs. See also Understand won't start.

3. (Optional) Add to PATH and license

Add scitools/bin/linux64 to each user's PATH. Then enter your license, or from the CLI: und -setlicensecode <CODE>.

You can create projects, analyze, and generate reports/metrics with the und CLI (command reference) — no GUI required. Understand offers a CLI-only kit on Linux; on Windows, install just the command-line pieces with the installer's command-line mode (see the Windows tab's silent-install example). For a worked example, see Headless workflow — create, analyze, check, report.

Graphs still need X11

Report/metric generation works headless, but generating graphs (GUI or API) requires X11 libraries on the machine, because images are rendered via X11. If drawing over a remote display is slow, see Slow drawing over X11 / remote display.

Install the CLI on Linux

Copy the CLI kit's link from licensing.scitools.com/download, then:

wget <build-url>/Understand-CLI-<version>-Linux-64bit.tgz
tar -xvzf Understand-CLI-<version>-Linux-64bit.tgz
# executables: scitools/bin/linux64/{und,uperl,upython,userver,uvalid}

License it, then verify by launching und interactive mode:

scitools/bin/linux64/und -setlicensecode XXXXXXXXXX
scitools/bin/linux64/und            # interactive; confirms a valid license

See licensing from the command line and the und licensing reference for offline/node-lock/server options.

Docker

An official image is published on Docker Hub:

docker run -it --rm scientifictoolworks/understand:latest

The image is built from the Linux CLI tarball on an Ubuntu base (with gcc, libglib2.0-0, libgssapi-krb5-2, and a UTF-8 locale for Qt). You still supply a license (env var or code).

WSL

To run the Docker image under Windows, use WSL 2 and configure Docker to use the WSL 2 backend. Give WSL enough memory for analysis — e.g. in %UserProfile%\.wslconfig:

[wsl2]
memory = 12GB
