Enforce dependency rules ("X must not depend on Y")

Once your code is organized into architectures — built and enabled, or a custom architecture that reflects your intended design — you can declare rules about what may depend on what — for example, "the API must not depend on the UI" — and have Understand flag every reference that breaks them. Not sure which rules are worth writing? The Dependency Matrix shows where the unwanted coupling already is.

Configure the rules

  1. Checks → Configure Dependency Checks.
  2. Select an architecture node at the top of the dialog.

  3. Tick the rule(s) for that node and pick the other node they apply to. Available rules:

    Rule Meaning
    No circular dependencies allowed among immediate children The node's child nodes may not form cycles.
    can't depend on anything except… The node may only depend on an allowed list.
    can't be depended on by anything except… Only an allowed list may depend on the node.
    can't depend on X The node must not depend on node X.
    can't directly depend on X The node must not depend directly on node X.

  4. Each rule you add appears in the Configured Checks list. One rule can add two checks — e.g. "src/cli can't depend on src/plugins" also verifies "src/plugins is not depended on by src/cli", because references go both ways.

  5. Click Save & Run.

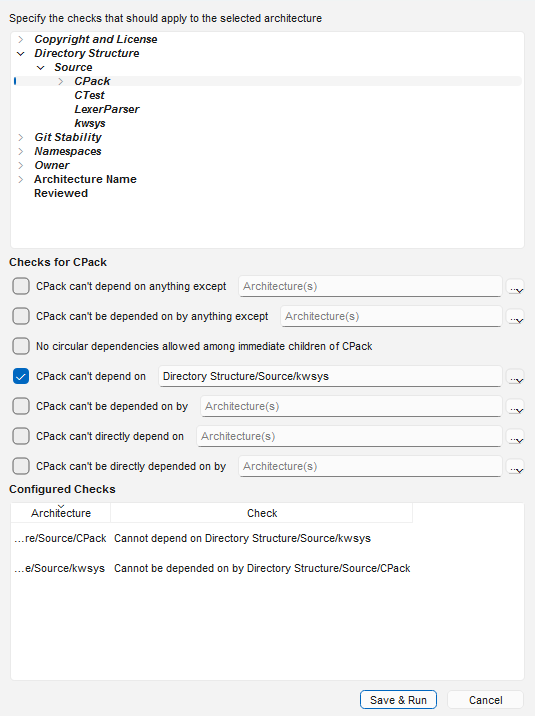

The Configure Dependency Checks dialog. The architecture tree at the top has the CPack node selected under Directory Structure/Source. In the rules below, "CPack can't depend on" is ticked with Directory Structure/Source/kwsys chosen. The Configured Checks list shows the two resulting checks: CPack cannot depend on kwsys, and kwsys cannot be depended on by CPack.
One rule, two checks: ticking CPack can't depend on kwsys adds both directions to the Configured Checks list.

Re-run any time with Checks → Run Dependency Checks.

Review violations

Running the checks opens three linked views:

  • Dependency Violations panel — the list of violations (with any exceptions noted). Its toolbar has Configure, Export csv, a Filter (limit to uncommitted changes, an architecture, or a custom filter), and toggles for the two views below.

    The Dependency Violations panel reporting 1 violation found in 1 of 1 checks: CPack cannot depend on kwsys, with 1 pair of architectures and 2362 suggested references to remove.
    The Dependency Violations panel: each failed check reports how many architecture pairs violate it and how many references would have to go.
    - Dependency Violation Graph — shows the relationships that break the selected check. Expand nodes to reach the offending references; highlighted lines are the references Understand suggests removing to break the dependency.

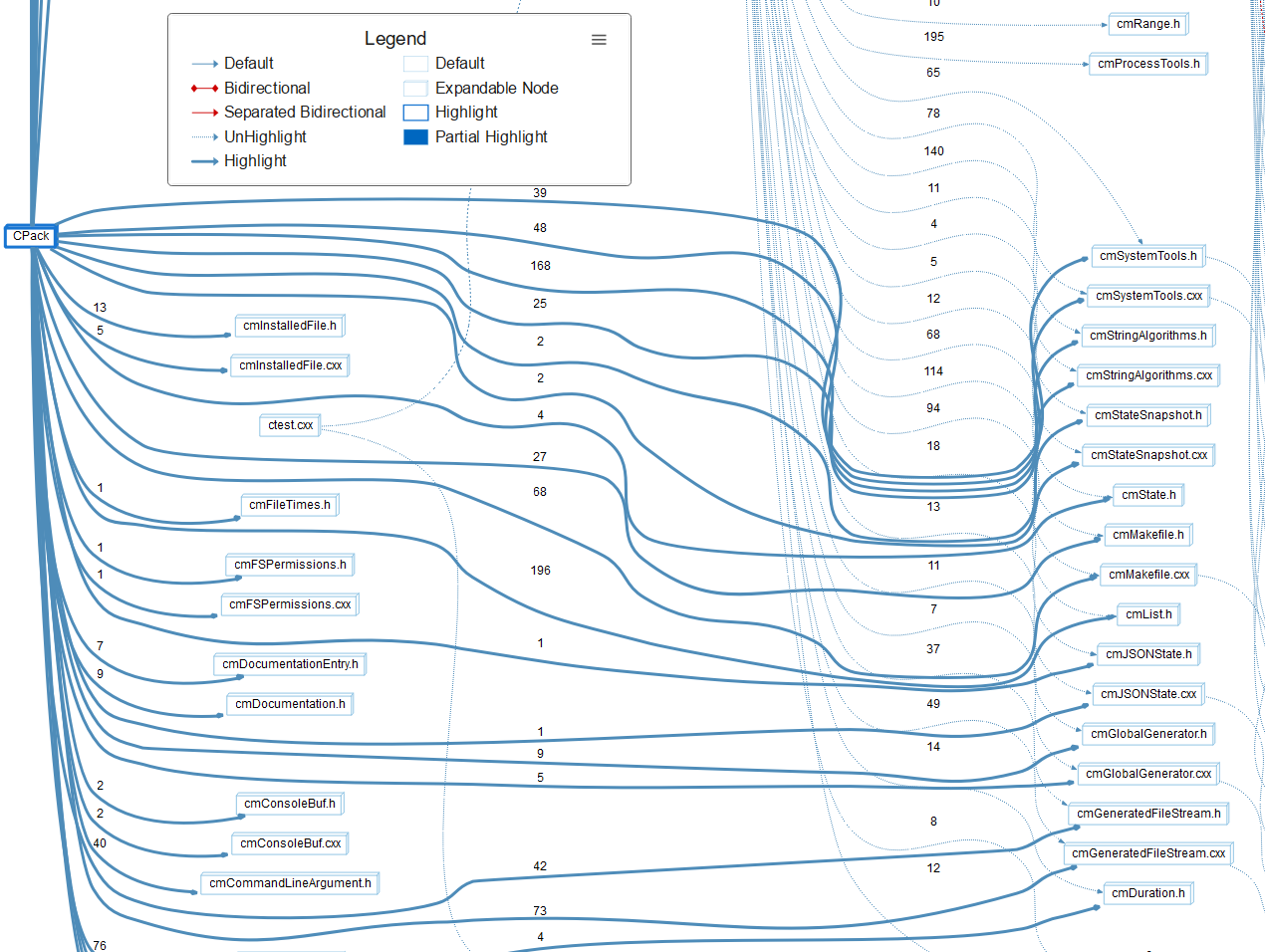

    The Dependency Violation Graph for "CPack cannot depend on kwsys". The CPack architecture node on the left fans out thick highlighted edges, each labeled with its reference count, to the files behind the violation — cmInstalledFile, cmFileTimes, cmSystemTools, cmMakefile and others — while unrelated dependencies stay as thin dotted lines. The legend distinguishes Highlight from UnHighlight edges.
    The violation graph for CPack cannot depend on kwsys: the thick highlighted edges (with reference counts) are the dependencies Understand suggests removing; everything else fades to dotted UnHighlight lines.
    - Dependency Browser — lists the exact references behind the selected violation. See browse & export dependencies.

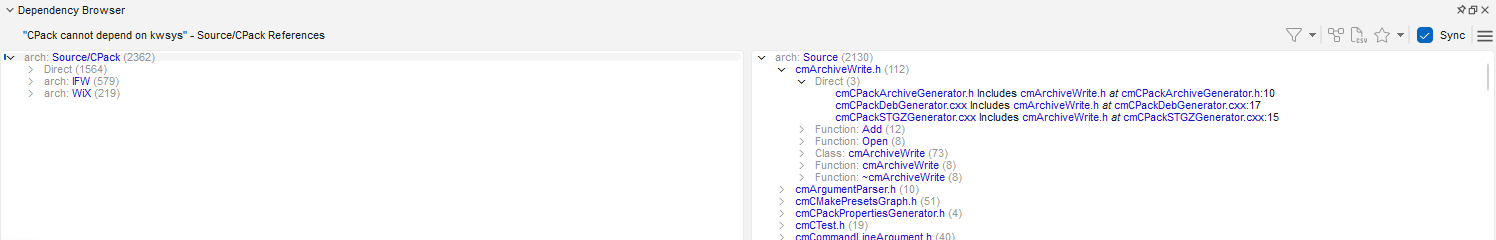

    The Dependency Browser scoped to the violation "CPack cannot depend on kwsys". The left pane shows the Source/CPack architecture with 2362 references; the right pane drills into individual files such as cmArchiveWrite.h, down to the exact Includes lines in cmCPackArchiveGenerator.h and cmCPackDebGenerator.cxx.
    Selecting a violation scopes the Dependency Browser to it — the right pane drills down to the exact Includes references, file and line, behind the broken rule.

Keep it enforced automatically

Dependency checks are CodeCheck checks (their IDs start with DEP_ in the check catalog), so you can enforce them continuously rather than by hand:

  • In the background: add the dependency rule to a CodeCheck configuration and turn on Run in Background — developers get a warning in the editor the moment they add a forbidden dependency. See background checks.
  • In CI: include the rule in a configuration run by und codecheck. und codecheck can also scope a run to an architecture with -arch "Directory Structure/src".

Stop the bleeding first

If an existing codebase already violates a new rule, enforce it in the background to block new violations while you work through the backlog, rather than trying to fix everything at once.
