Standardize team notes with annotation templates

Annotations attach notes to entities, files, and lines without touching the source. A template gives those notes a shape: named fields with types, defaults, and required-ness, so a code review, an action item, or a technical-debt marker records the same things whoever writes it — and can be grouped and searched afterwards.

Create a template

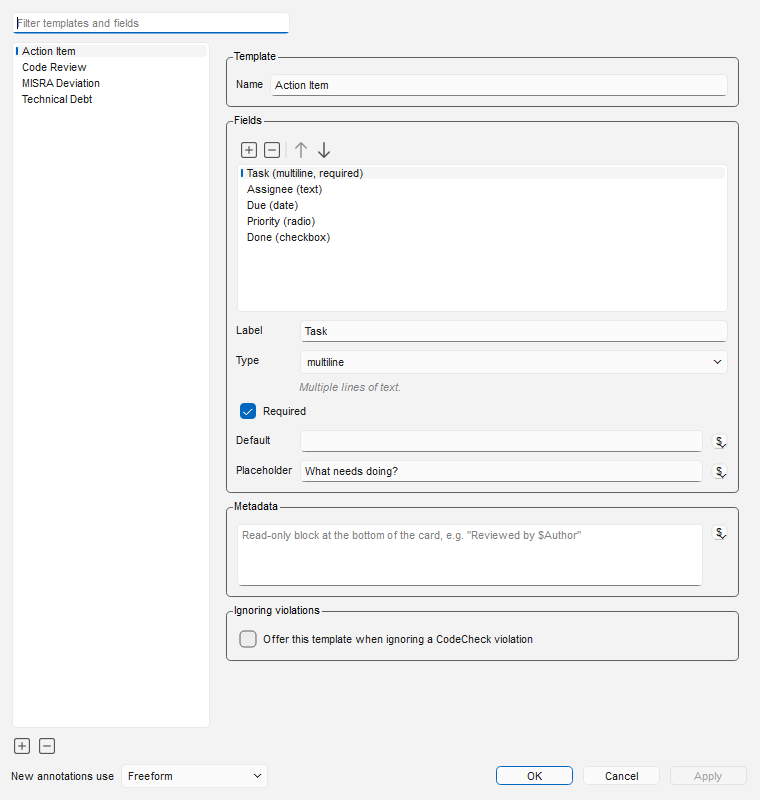

Annotations → Annotation Templates… opens the template editor:

One template selected: its fields in order, and the selected field's definition — type, required, default, placeholder.

Add a template with + (− removes the selected one), name it, then add fields. Each field has a label and a type:

Type	Records	Notes
text	one line
multiline	free text
droplist	one (or several) of a closed set	enable multi-select per field
radio	one of a closed set	shown as radio buttons
checkbox	yes/no
date	an ISO date	calendar picker
number	a number
url	a link	clickable on the card
label	descriptive text only	headings/instructions; records nothing

A droplist or radio field can also depend on another field: set Depends on and its options follow that field's value — e.g. Component offers different parts per Area. Options are entered one depends-on value at a time (Options when), with a live preview, and plain lines are base options offered whatever the value is.

Three per-field switches do most of the work:

• Required — the annotation card and the Ignore Violation dialog both insist on a value before the record is saved, and reports flag records that lack one.
• Default — pre-filled at creation. Defaults (and placeholders, and the Metadata block) expand $parameters against the annotated entity: $Author, $Date, $EntityName, $FileShortName, $Line, $ArchName and more — so "who recorded this, where, when" fills itself.
• Placeholder — the hint shown while the field is empty.

The Metadata box adds a read-only block to the bottom of every card made from the template (e.g. Reviewed per the team's QMS procedure) — prefix a parameter with !! to drop its whole line when the value is blank, so Architecture: !!$ArchName writes nothing when annotating code. On a deviation record it rides after the fields. The Ignoring violations switch offers the template in CodeCheck's Ignore Violation dialog — that path has its own page.

Templates are stored in the project's annotation_templates.json, so the whole team shares the same set through version control or the shared project directory.

Use it on an annotation

Annotate as usual (right-click → Annotate) and pick the template in the card's droplist. The card becomes a form; required fields are starred — the label turns red while the field is still empty — and hold the card open until answered:

Editing: every field with its input widget. The free-text note box belongs to Freeform — with a template, the fields are the note.

Click away and the same card reads as text:

Completed: the record as the next reader sees it.

New annotations use (bottom of the template editor) sets what a fresh annotation starts as: a specific template, Freeform, or Last Used — whatever that author picked last in this project. Retyping an annotation to a different template carries values whose field keys match; the card reports what a retype would drop before it happens.

Find the records again

The Annotation Browser (Annotations → Browse All Annotations) groups the project's annotations by author, date, location — and by template and field values, which is where structured notes pay off:

Every Action Item, grouped by the fields the template guarantees are there.

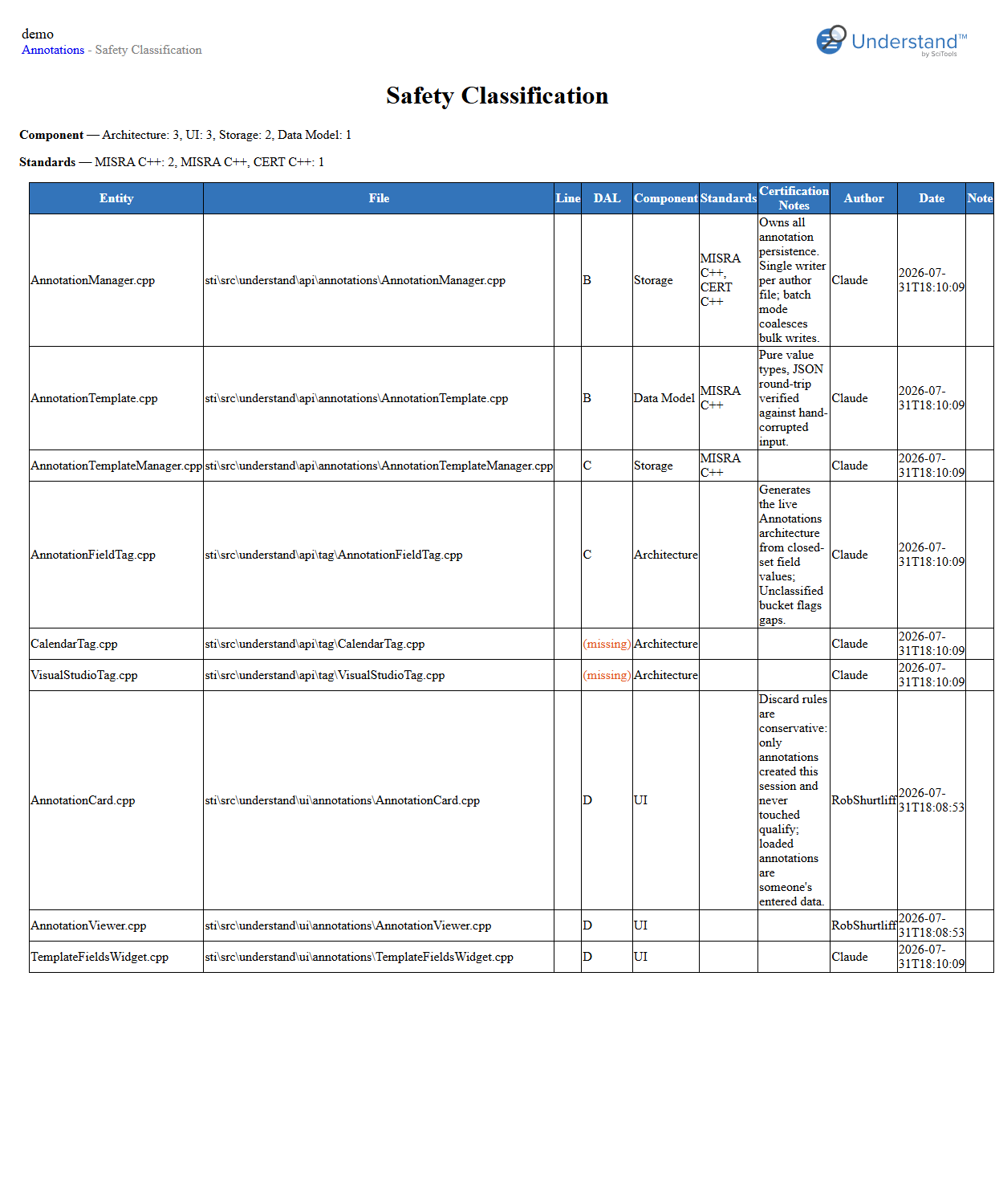

The browser answers the question interactively, but "is every file classified, and what is still missing?" also needs an answer you can hand to someone — a review meeting, a milestone check. The Annotations by Template Interactive Report is that document: one page per template with every field as a column, required gaps counted up front, and each missing value flagged as a red (missing) cell:

Coverage as a document: every Safety Classification with its values — and the two files whose required DAL is still missing, flagged in red.

Run it from the project's Interactive Reports, or headlessly:

und -db project.und report -format html "Annotations by Template" out

Classify in bulk from the command line

A template adopted mid-project starts with a backfill problem: the groupings and reports above only pay off once every file carries its record, and nobody is opening two thousand cards by hand to get there. und annotate is the backfill: it applies a template to every entity a search matches, with $parameters expanded per target, so one command classifies a whole tree:

und -db project.und annotate -template ownership -fields "Component=$FileShortName;Owner=$Author" -ents "file ~unknown ~unresolved"

Every project file gets an ownership annotation: -ents chooses the targets by kind string, $FileShortName fills Component with each file's own name, and $Author fills Owner with the user running the command. Fields the assignments leave unset fill from the template's defaults; -retype moves existing annotations between templates with the same carry-over rules as the card. The same command re-run after an analysis keeps coverage complete as files are added. See the und annotate reference.

Scripts read the records as text

atn.text() returns the annotation as displayed — the body, then the record inlined as one Label: value line per field, opening with Template: <name>. Parse the fields back with the shared reader the deviation reports use (plugins/Shared/und_lib/deviations.py, fields_from_note), so every consumer reads a record the same way.
