Compare two versions of a project

To see what changed across a whole project — which entities were added, removed, or modified, and by how much — point Understand at a comparison database: a second .und holding an earlier version of the same code. That database can be an existing analysis you kept, or one Understand creates for you from a specific Git commit. Understand then diffs the two and reports the changes.

Set the comparison database

Open Compare → Comparison Projects to manage comparison databases in one panel. The table lists each comparison database with its Project name and analysis Status. Its toolbar:

Action	What it does
Open Project	Use an existing .und as the comparison database.
New Git Project	Create a comparison database from a Git commit (see below).
Analyze	(Re-)analyze the selected comparison database.
Close / Remove	Close it, or remove it from the list (the file is not deleted).
Locate Changed Entities	Open the Changed Entities Locator (see below).

A project cannot be compared with itself, so opening the current project as its own comparison is rejected.

Create a comparison database from a Git commit

Choose New Git Project to open the New Project from Git dialog. Fill in:

• Git Repository — the repository directory.
• Git Commit — the commit hash (use the … button to browse commits).
• Database Name — where to save the new .und (defaults next to your project, suffixed with the commit).
• Configure settings after creation — optionally open the project configuration afterwards.

Click Create Project. Understand builds a read-only database whose file contents are read from that commit, then adds it as a comparison database. (Note: only file contents come from the commit — the set of files to analyze is not auto-derived from the commit, so start from a project configured for the same code.)

What the comparison reports

Changed Entities Locator

Compare → Locate Changed Entities (or the panel's Locate Changed Entities button) opens a filterable list of the entities that differ between the two versions. Only entities with a source body are compared — files, functions, classes, methods, and the like; line-less entities such as objects and variables, and multi-file entities such as namespaces, are never compared and so never appear as added, removed, or changed. Each row carries a Status and line-churn columns:

Status	Meaning
Added	Present now, absent in the comparison version.
Removed	Present in the comparison version, gone now.
Changed	Present in both, but the source text differs.

The churn columns show, per entity:

Column	Metric	Meaning
New Lines	CountLineNew	Lines added.
Removed Lines	CountLineRemoved	Lines removed.
Changed Lines	CountLineChanged	Lines changed.
Percent Changed	PercentChanged	(Added + Removed + 2×Changed) / (current + previous lines).

Any ordinary metric can also be shown as a delta using a Diff-prefixed name — DiffCountLine, DiffCyclomatic, DiffCountPath, etc. — computed as current − comparison and signed (negative means it shrank).

Added and removed entities are colour-coded in the list; you can change those colours on the Colors settings page.

Visualize and drill in

• Compare → Changes Treemap paints one box per changed entity, sized and coloured by how much it changed — see Where did the churn happen? the Changes Treemap.
• Selecting a changed entity opens the side-by-side diff of its old and new source.
• Graphs offer Compare variants that draw both versions at once, with added/removed/modified entities and references color-coded — most default graphs have one; see the graph catalog.

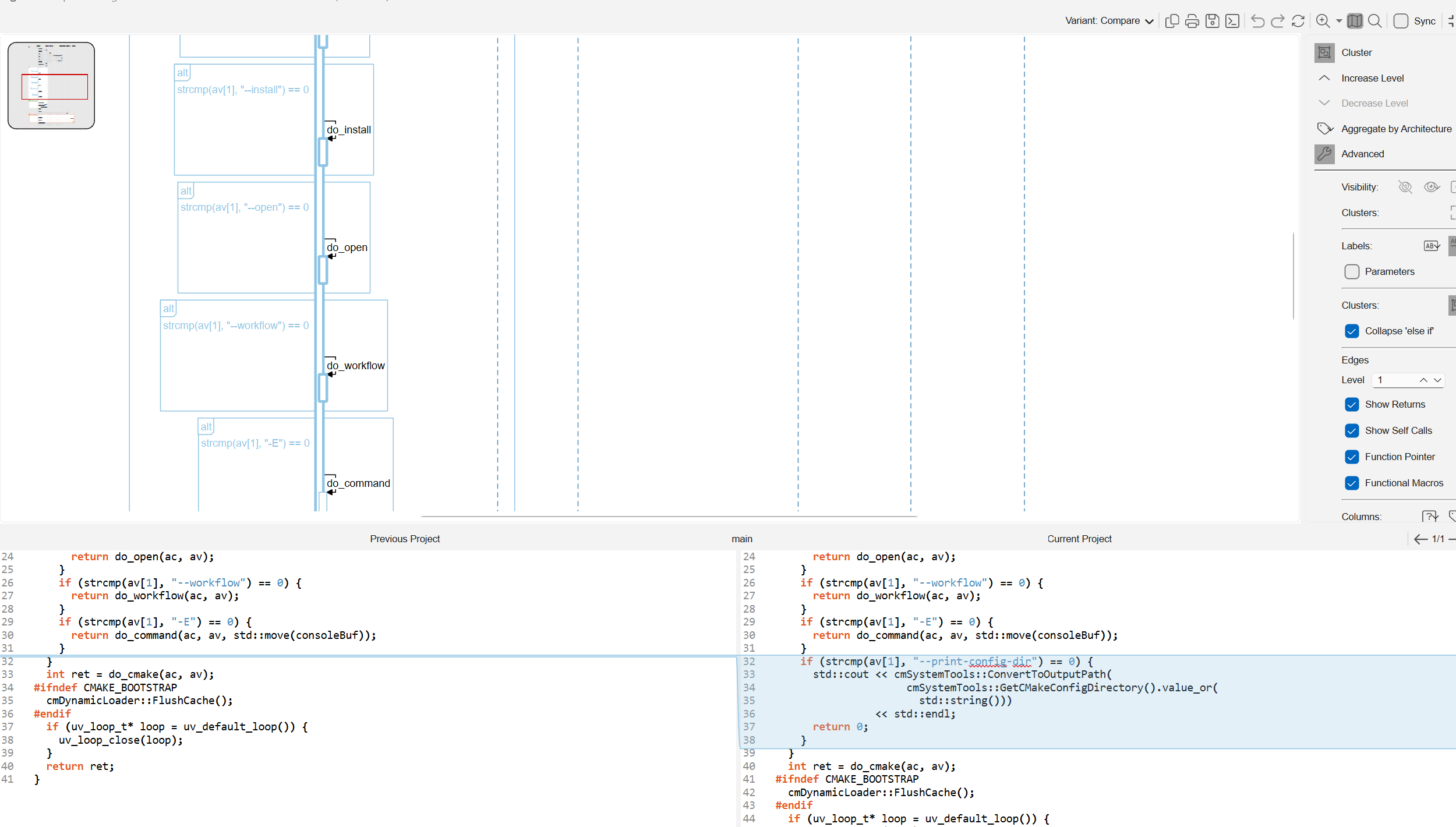

A graph's Compare variant: the diagram spans both versions, and the panel below shows the Previous/Current source side by side — here an added --print-config-dir block is highlighted.

From the command line

Set the comparison database (or Git repository) headlessly with und settings:

und settings -comparisonprojectpath baseline.und myProject.und
und settings -gitrepositorydirectory /path/to/repo myProject.und

Create a commit-pinned database directly with und create:

# File contents are read from <githash>; without -refdb no files are added for you.
und -db baseline.und create -gitcommit <githash> -gitrepo /path/to/repo -languages C++

-refdb <project.und> copies an existing project — settings and its file set, which is then rescanned against the pinned commit — and registers the new database as that project's comparison database. It's usually what you want for a baseline, since the two projects then cover the same files.

Export the changed entities to CSV with und export -changes (columns include Status, the churn metrics, and any metric name). That command — including its -cmpdb, -kinds, and -columns flags, the default column set, and the PercentChanged formula — is documented in Export & track metrics over time.

Baselining CodeCheck violations is separate

To ratchet violations (flag only new ones against a previous inspection) rather than compare code, see Baseline existing violations.
